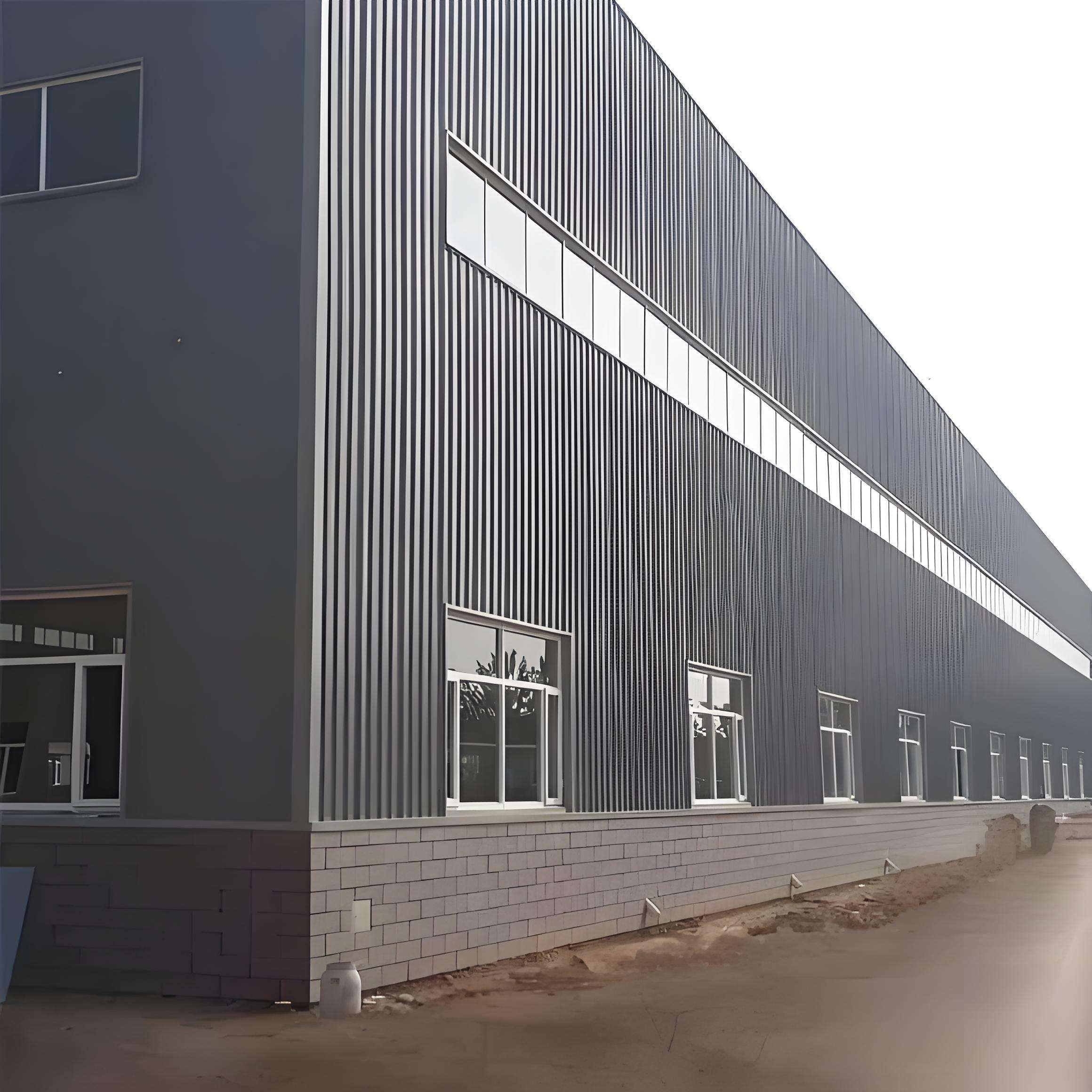

Durable Metal Building Kits for Logistics Warehouses

Durable Metal Building Kits for Logistics Warehouses

The Art and Science of Steel Structural Warehouse and Workshops: Design Diversity and Practical Wisdom Introduction: The Framework of Modern Civilization Steel structural frames form the literal and metaphorical backbone of contemporary architecture and infrastructure. From soaring skyscrapers to innovative public structures, steel's unique combination of strength, versatility, and adaptability has enabled engineers to transform ambitious visions into built reality. This article synthesizes decades of global experience with steel framing, examining both established and emerging design philosophies that continue to push the boundaries of what's structurally possible.

----------------------------------------------------------------------------------------------------------------------------------

1. Structural Systems: Tailoring Frameworks to Function

The choice of structural system fundamentally dictates a building's behavior under loads. Modern engineering offers multiple sophisticated approaches:

* Moment-Resisting Frames:Characterized by rigid beam-column connections that resist rotation, these frames leverage inherent continuity to transfer both gravity and lateral loads. Ideal for medium-rise buildings requiring flexible floor plans, their performance depends heavily on connection design.Beijing's 91m-tall Changfu Palace Hotel (1987) exemplifies this system, achieving a 1/337 maximum drift ratio despite its slender profile. Notably,its designers deliberately chose this over a stiffer braced-frame alternative to prioritize construction simplicity 8.   * Braced Frames:   Introducing diagonal members transforms structural efficiency:    * Concentric Braces: Direct load paths handle high seismic forces economically but risk buckling under extreme loading.  Optimal for industrial facilities where ductility isn't primary 2.       * Eccentric Braces: Deliberately offset links act as ductile "fuses" that yield first during earthquakes, protecting primary members. The calculated deformation in the beam segment (α) dissipates energy, making this system a gold standard in high-seismic regions 2.          * Off-Center Braces: An innovative variant where crossed braces intentionally miss alignment, creating a controlled softening  effect that reduces seismic input forces—ideal for open ground floors in retail or lobby spaces 2. * Hybrid Systems:   Combining frames with shear walls or cores offers balanced solutions. Shanghai Tower (632m) utilizes a mega-frame with outriggers—steel-concrete composite supercolumns and belt trusses work with its core to resist complex wind vortices,  demonstrating how hybridity enables record-breaking heights 8.

Table: Steel Frame System Selection GuideSystem TypeMax Practical HeightLateral Drift ControlIdeal ApplicationsMoment Frame30 storiesModerateOffices, Hospitals Concentrically Braced40 storiesHighIndustrial, Data CentersEccentrically Braced50 storiesExceptionalHigh-Rise, Seismic ZonesHybrid (Core + Frame)100+ storiesUltra-HighSuper-Tall Buildings

----------------------------------------------------------------------------------------------------------------------------------

2. Iconic Case Studies: Lessons from Pioneering Projects

A. The "Apple Bike Shed" – Netherlands (2010)This whimsical yet structurally sophisticated bicycle pavilion demonstrates how parametric design enables complex geometries:

* Spiral Framework: Five ascending helical beams create a self-stabilizing shell, carrying 60% of vertical loads through axial action.

* Innovative Node Design: Custom bolted connections (not welded) balanced Dutch labor costs. Though specified to prevent nesting, birds still colonized cavities—a lesson in designing for all environmental interactions 1.

* Software Synergy: SCIA Engineer handled primary FEA, while Tekla’s automated detailing won awards—proving digital integration’s value in fabricating irregular components 1.

B. Double-Bay Portal Frames – Industrial BreakthroughCold-formed steel portal frames evolved dramatically with multi-bay configurations: * Slender Internal Columns: Under symmetrical gravity loads, internal columns experience near-zero moment, enabling leaner designs. Under wind, however, stiff external bays carry 80%+ of lateral forces, revealing why internal joints demand  specialized detailing like ECT-1/2 configurations 4.

* Cost Efficiency: One internal column serves two bays, reducing foundations/connections. A 30m x 100m warehouse saved 19% in steel tonnage versus twin single-bay frames 4.

----------------------------------------------------------------------------------------------------------------------------------

3. Connection Design: Where Theory Meets Reality

Joints dictate structural integrity more than any member. Advances address seismic and fabrication challenges: * Traditional Methods:

* Bolted Splices: Allow field adjustments but require strict slip-control.      * Welded Joints: Offer continuity but risk brittle fractures if procedures lapse.

* Seismic Innovations:   Corrugated steel-plate composite joints (2023 research) achieved 0.206 damping ratios and 3.67 ductility factors by forcing plastic hinges into beams—validating "strong joint, weak member" principles 7.

* Automated Nodes: The Apple project’s macros for Tekla standardized 5,000+ unique bolt patterns—slashing detailing time by 70%

Table: Connection Performance ComparisonConnection TypeStrength EfficiencyConstruction SpeedSeismic SuitabilityConventional Welding95%SlowModerateHigh-Strength Bolting85% FastGoodCorrugated Composite110%*MediumExcellentRelative to member yield capacity

----------------------------------------------------------------------------------------------------------------------------------

4. Emerging Frontiers: Lightweight & Sustainable Systems

A. Light Steel Framing (LSF)Cold-formed sections (C≤4mm) now dominate low/mid-rise construction:* Speed & Precision: Pre-punched studs/services reduce build times 40% versus concrete 10.

* Sustainability: 100% recyclable frames with infill insulation achieve Passive House standards.

* Gilan Province Project: Post-earthquake reconstruction in Iran used LSF for its 1/3 weight of masonry, slashing foundation costs in poor soils 10.

B. Robotic Fabrication & AI* Algorithmic optimization now minimizes steel tonnage in complex nodes by 15–25%.

* Automated welding cells ensure consistent quality where manual skill gaps exist.

----------------------------------------------------------------------------------------------------------------------------------

5. The Art of Anticipating Real-World Behavior

Beyond codes, expert intuition avoids pitfalls:* Bird Nests as Load Cases: The Apple’s hollow members unexpectedly hosted birds—prompting future designs to incorporate pest barriers 1.

* Foundation Economics: LSF’s 60% lighter frames enable cheaper rafts in weak soils—a hidden savings often overlooked.

* Maintenance Access: Shanghai Tower’s inspectable dampers exemplify designing for whole-life usability.

----------------------------------------------------------------------------------------------------------------------------------

Conclusion: The Future FrameSteel structures continue evolving through symbiotic advances in materials science, computational design, and constructional pragmatism. As trends like automated light-gauge systems and performance-based seismic design gain momentum, engineers mustn balance innovation with lessons etched into past structures—sometimes literally, by nesting birds. The next era will prioritize not just strength and efficiency, but resilience, adaptability, and circularity, ensuring steel remains humanity’s most versatile building companion.

Specification

Packing & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

Company Profile

Xingya Steel: Engineering Excellence in Structural FabricationXinjiang Xingya Steel Structure Co., Ltd. (commonly known as Xingya Steel) has established itself as a premier force in China’s steel construction sector through its integrated design, manufacturing, and installation capabilities. Founded in 2008 and holding National Class-III Construction Certification, the company combines technical expertise with advanced manufacturing technologies to deliver complex structural solutions across diverse industries

   We leverage over 20 years  of proven experience delivering top-tier steel structures globally. Our core strengths include: High-Capacity Production:Operating expansive, modern facilities equipped with cutting-edge fabrication machinery (CNC cutting, automated welding, hydraulic presses), enabling efficient large-scale production of thousands of tons annually and handling complex, sizable projects. Superior Craftsmanship & Quality: Expertise in advanced manufacturing methods and stringent processes ensures exceptional precision engineering, quality craftsmanship, and structural integrity. Our commitment is reinforced by rigorous multi-stage QC (ISO-certified systems) and highly skilled technicians holding relevant welding certifications. Proven Expertise: Decades of successfully executing diverse projects across [mention sectors if possible, e.g., industrial, commercial, infrastructure] equip us with deep practical knowledge and reliable solutions for any structural challenge, consistently meeting demanding specifications and timelines. End-to-End Capability:  Offering comprehensive services from detailed design collaboration and engineering support through precise fabrication to efficient logistics and on-site installation management. This powerful combination of scale, advanced technology, skilled workmanship, and extensive experience establishes us as a highly capable and trusted partner for demanding steel construction needs.
