Color steel plate

Name: Color steel plate
SKU: 0

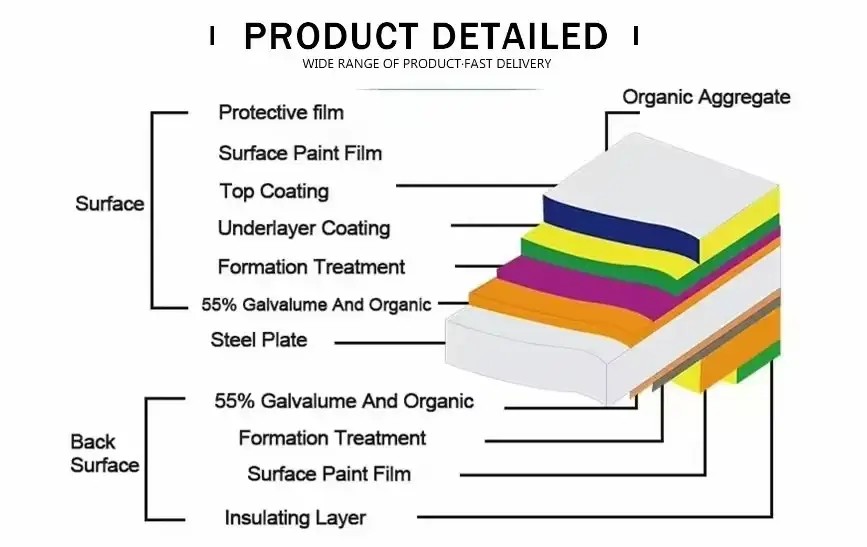

PPGI (Pre-coated Galvanized Steel Coil) is a composite material consisting of a hot-dip galvanized steel substrate, coated with an organic coating after surface pretreatment. The substrate is commonly hot-dip galvanized or galvanized steel, with some high-weather-resistant products utilizing fluorocarbon resin.
Material Composition
Substrate: Hot-dip galvanized or galvanized steel, with a protective layer formed on the surface through a hot-dip coating process, providing both corrosion resistance and mechanical strength.
Application Characteristics
PPGI is widely used in construction, home appliances, and other fields. Its surface treatment combines the strength of the steel with the corrosion resistance of the organic coating, making it suitable for both indoor and outdoor environments.

+86 17305413116

+86 17305413116

jack@xingyasteel.com

Product Parameters

Standard	ASTM, JIS, EN, DIN, GOST, GB , etc.
Grade	SGCC,CGCC,SGCH,DX51D+Z/DX53D+Z/S220GD-550GD,Q195, Q215,Q235,Q345,ST37, A36,45# ,16Mn,
Thickness	0.13-0.70mm
Width	Max1250mm(600-1250mm)
Length	By coil
Base material	GI/GL/PPGI/PPGL
Zinc Coating	20g/㎡ to 275g/㎡
Coil Weight	3.5-5 ton for normal standard or as customer's request
Painting Thickness	Top side：10-25microns；Back side：3-20microns
Colour	RAL NO./Your sample
Coil ID	508mm/610mm
Packing	Waterproof paper+plastic film+iron packing+bunding, or as per customer's request

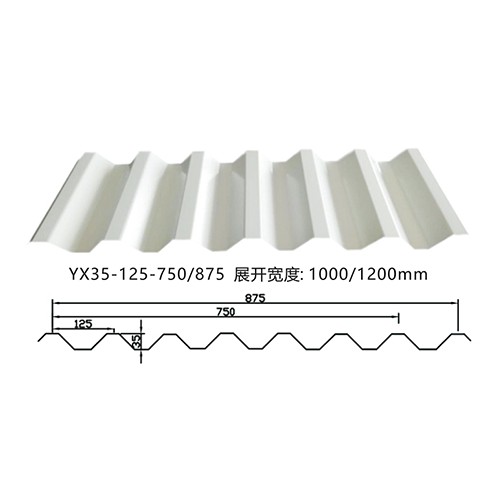

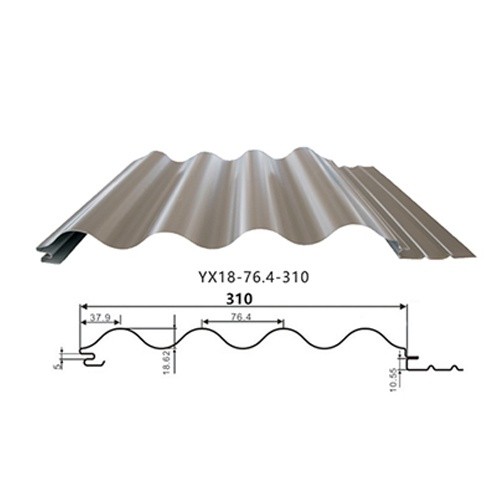

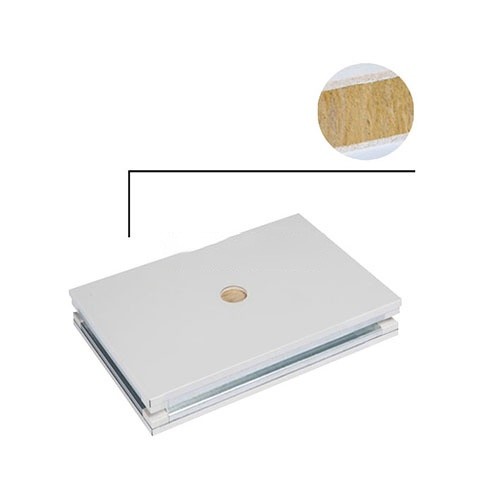

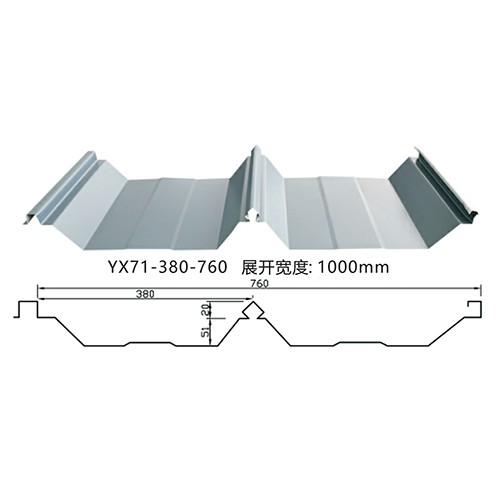

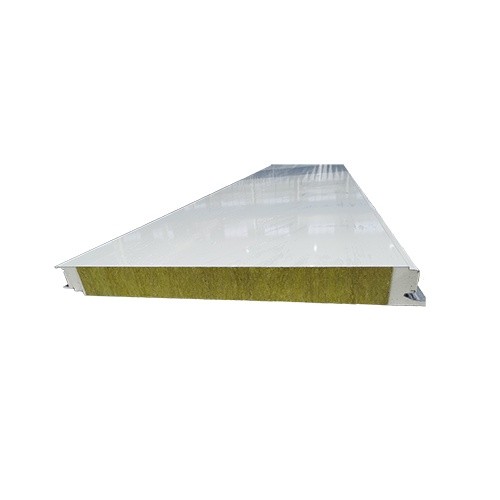

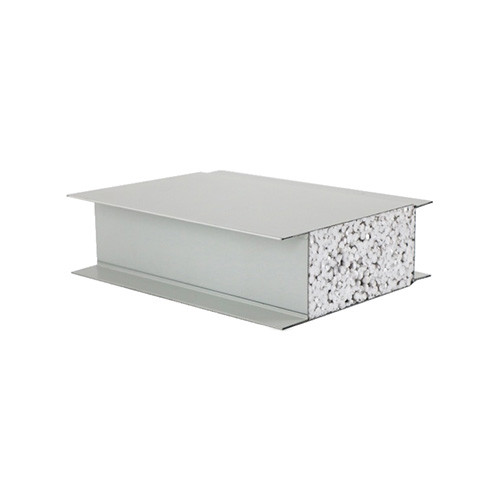

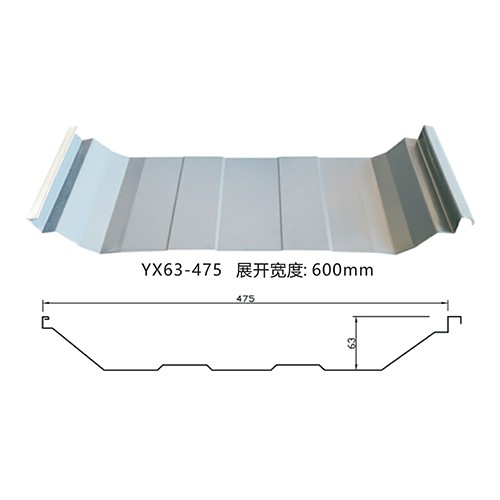

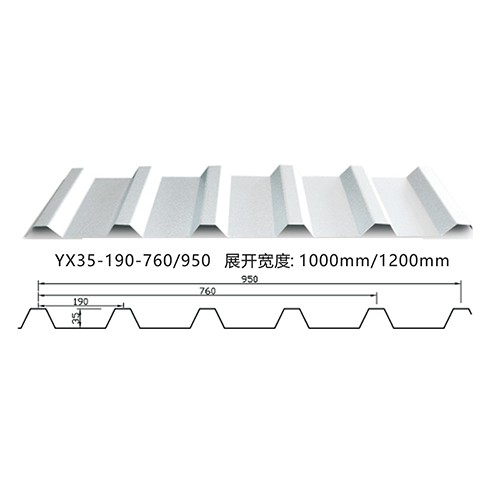

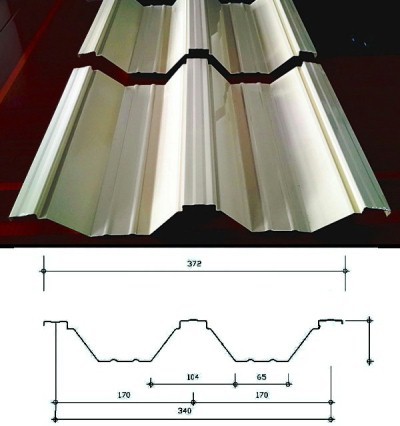

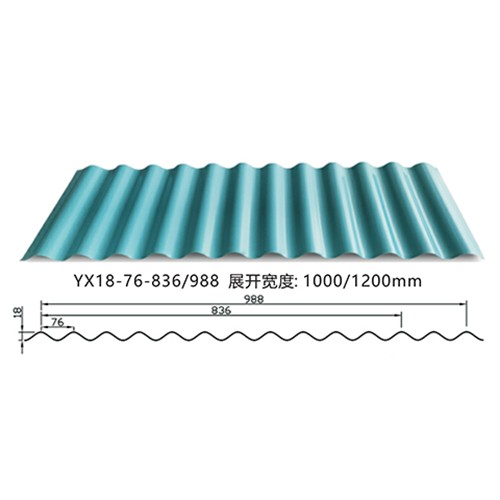

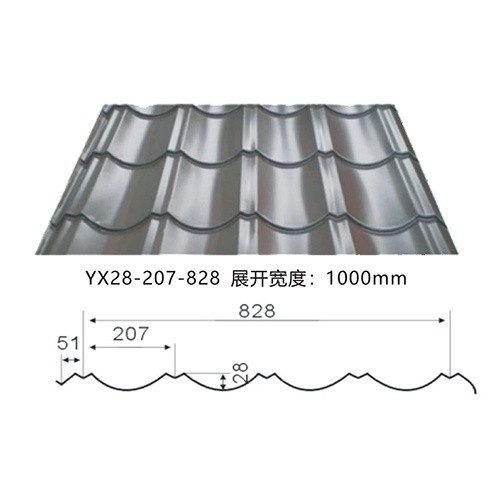

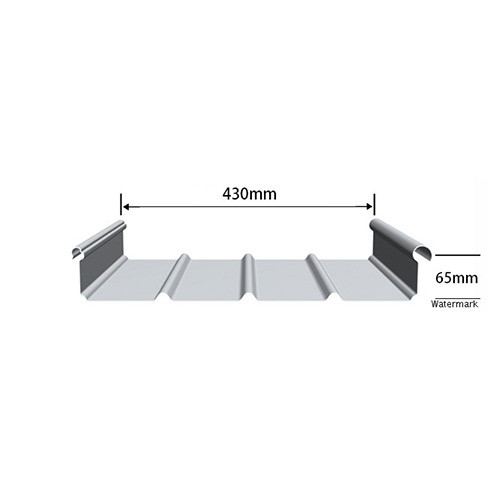

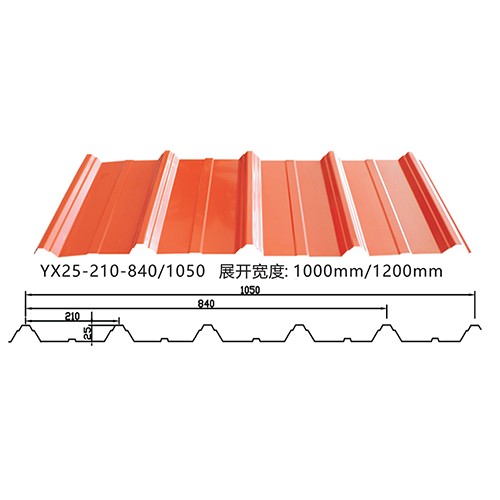

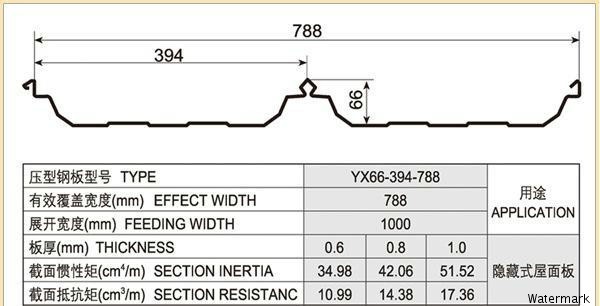

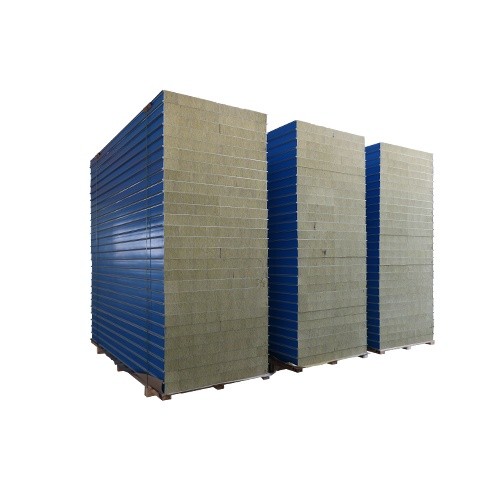

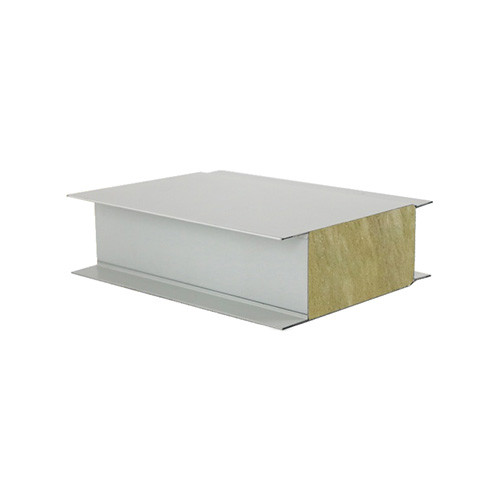

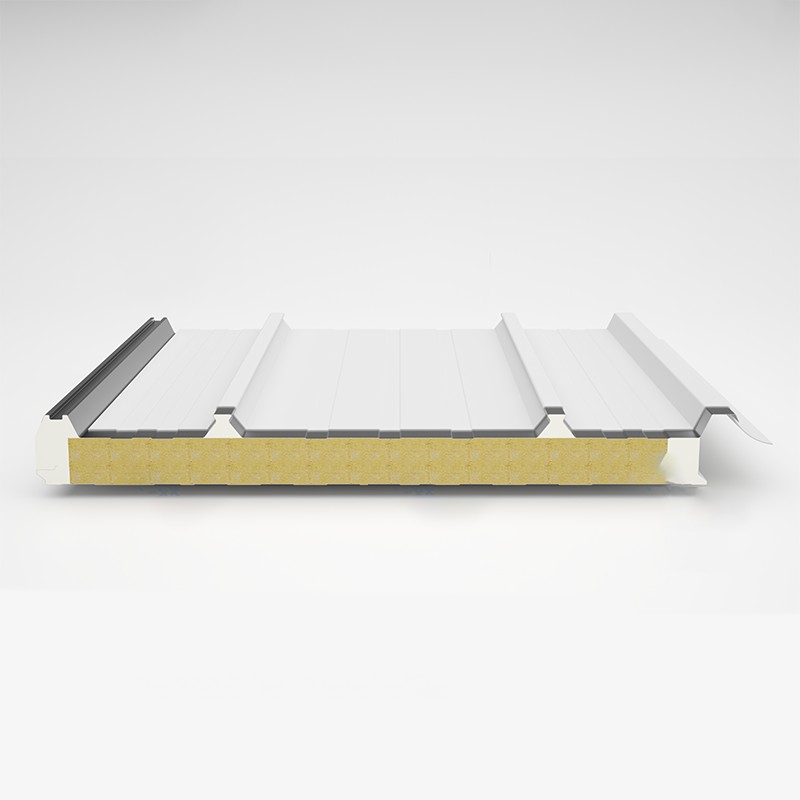

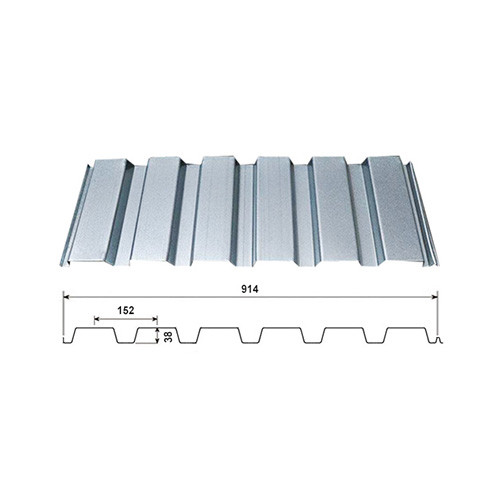

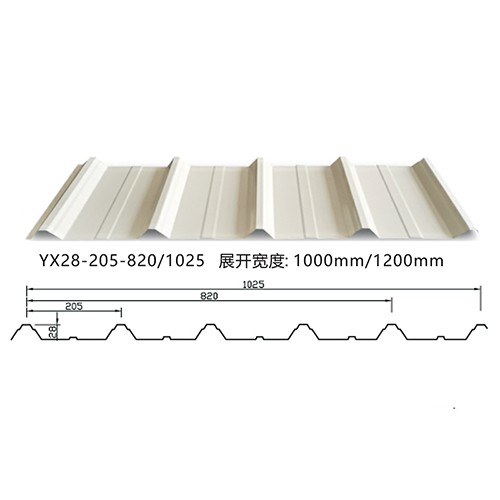

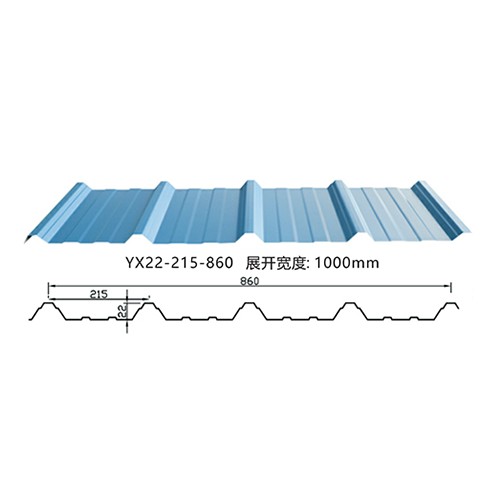

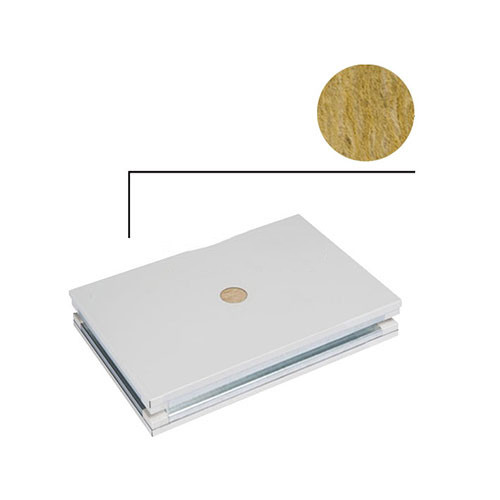

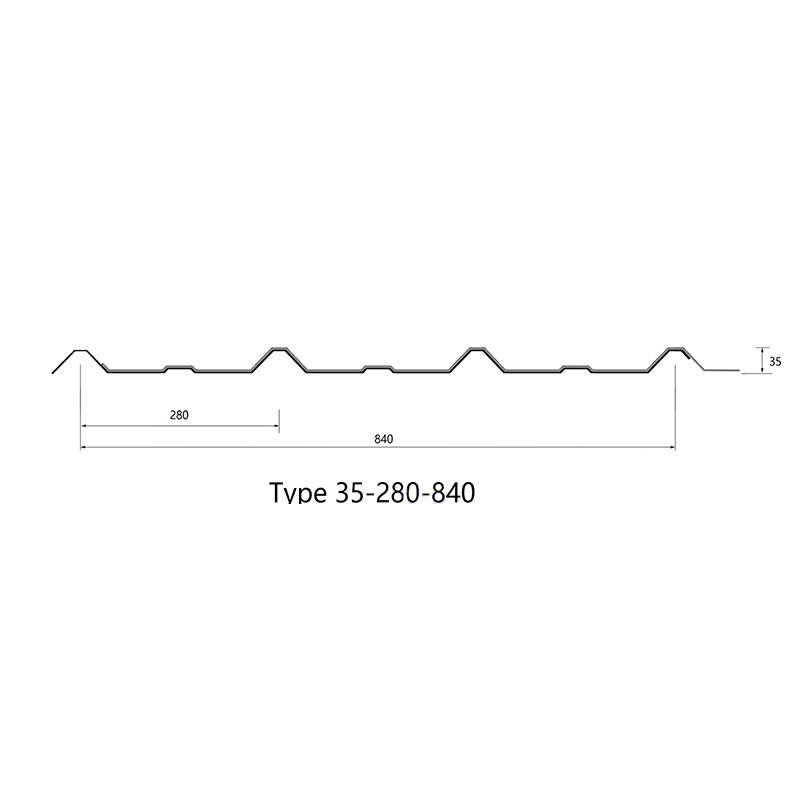

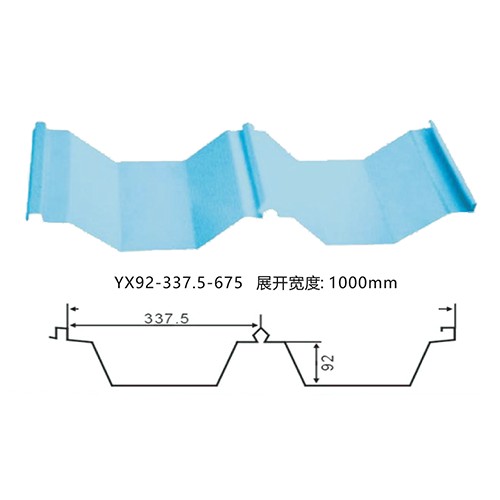

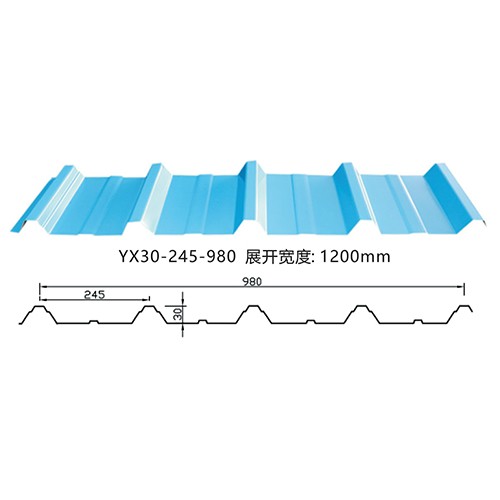

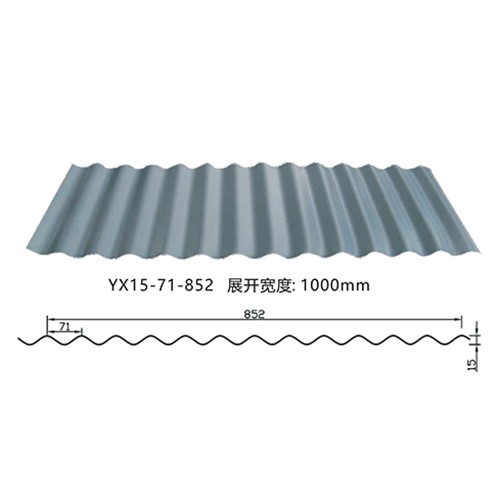

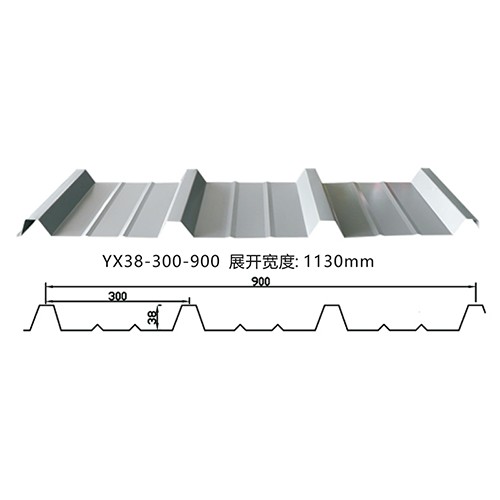

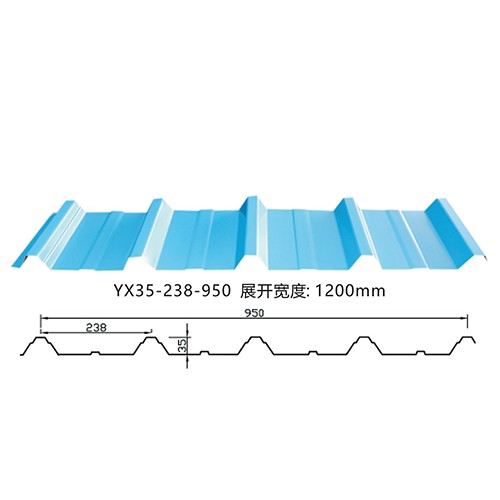

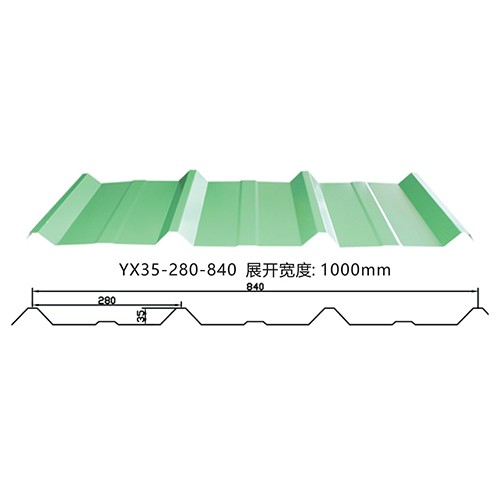

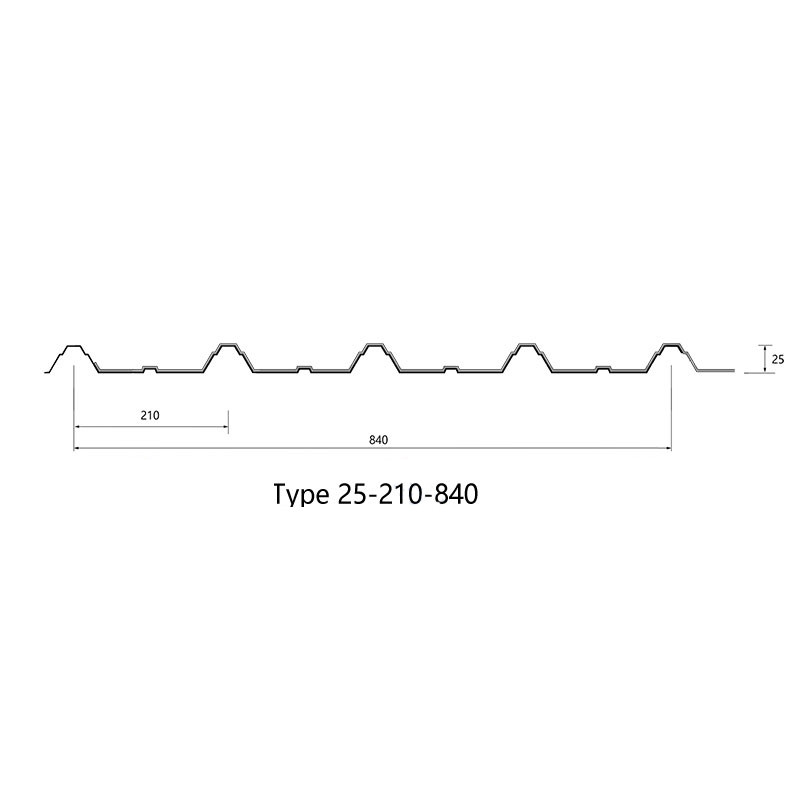

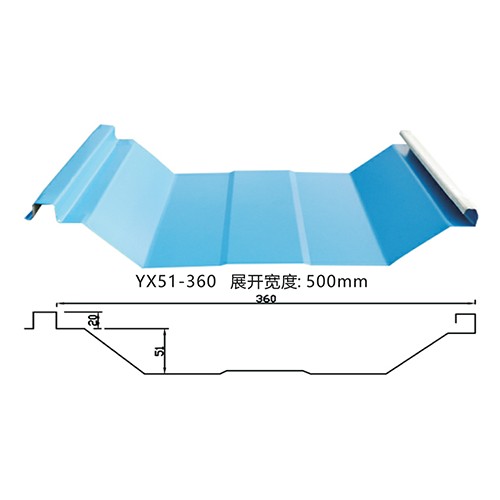

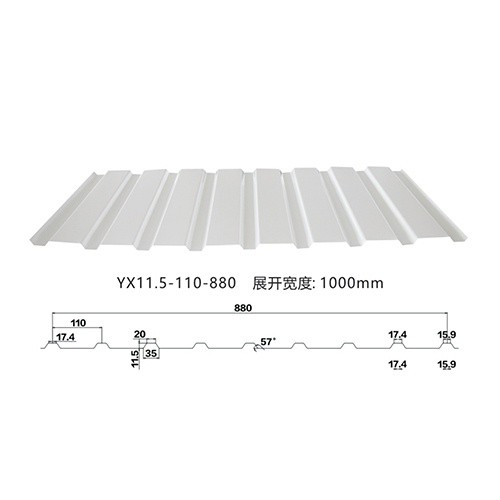

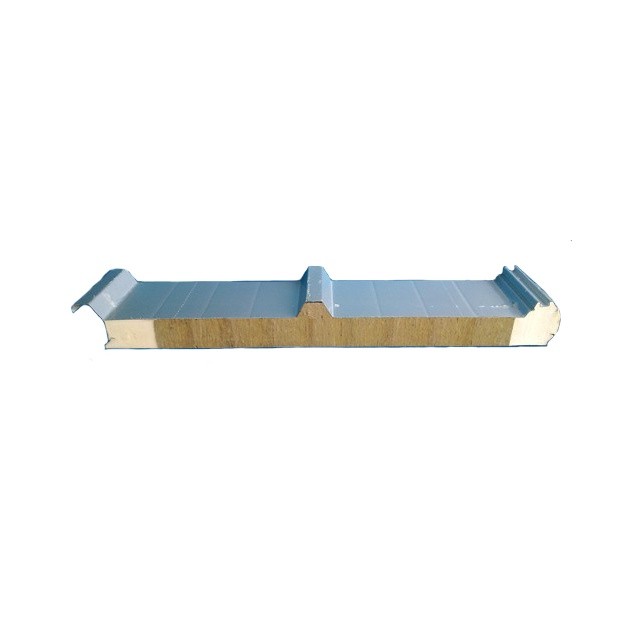

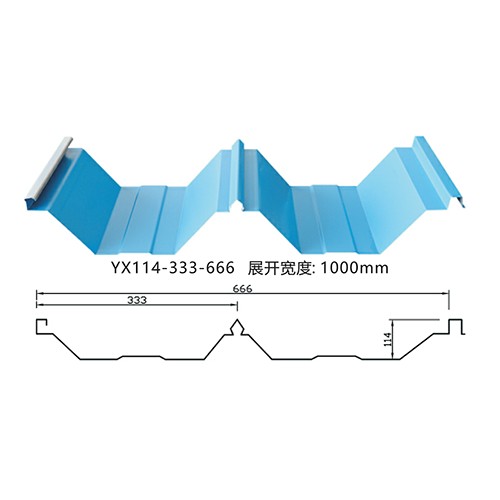

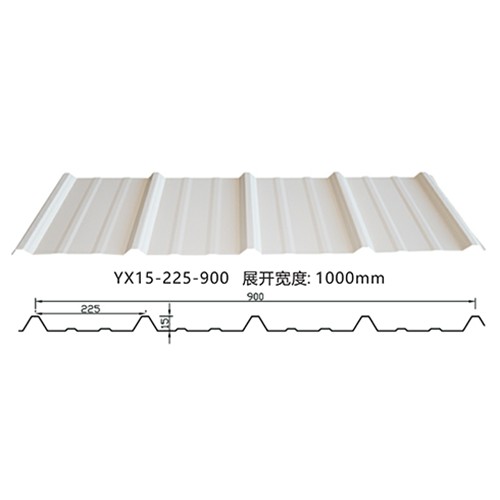

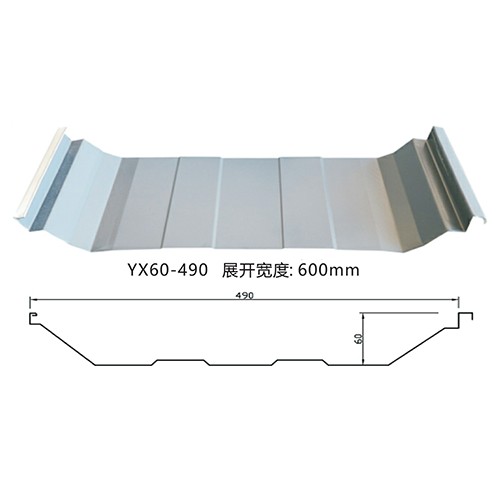

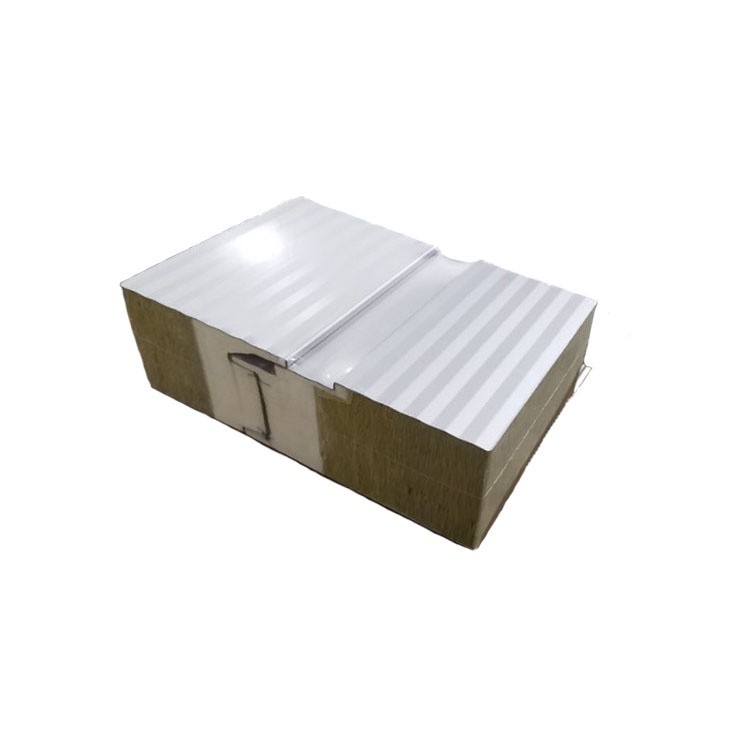

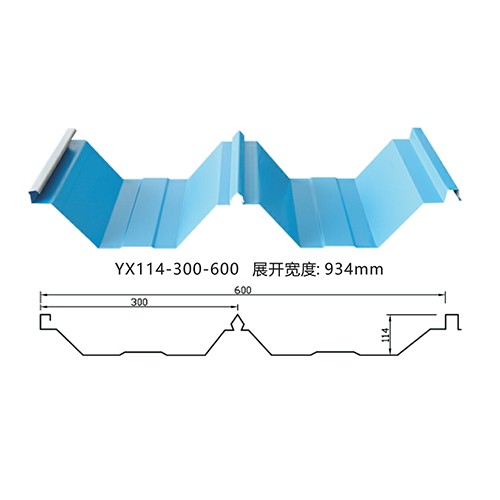

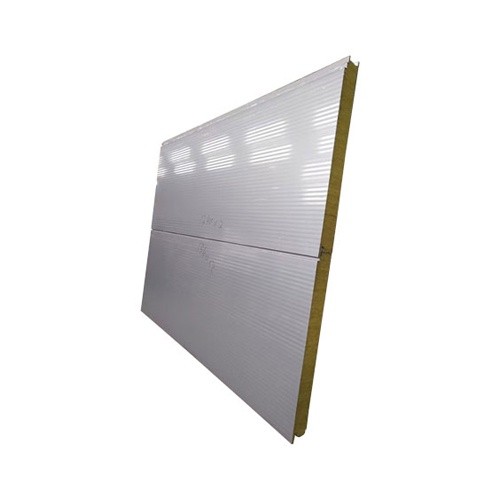

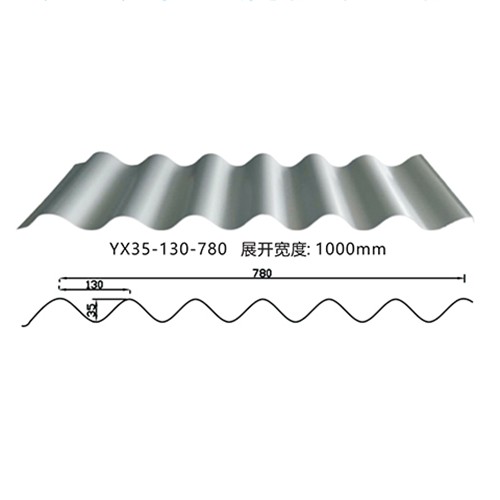

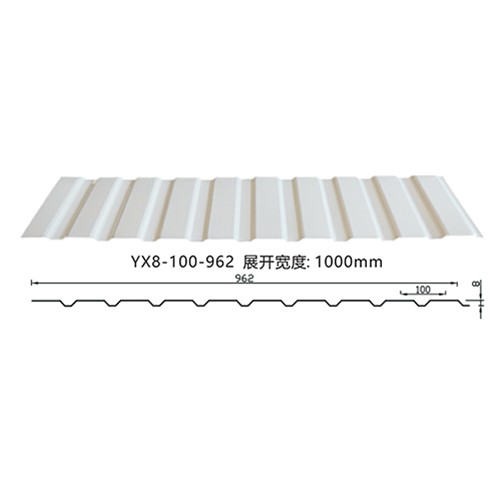

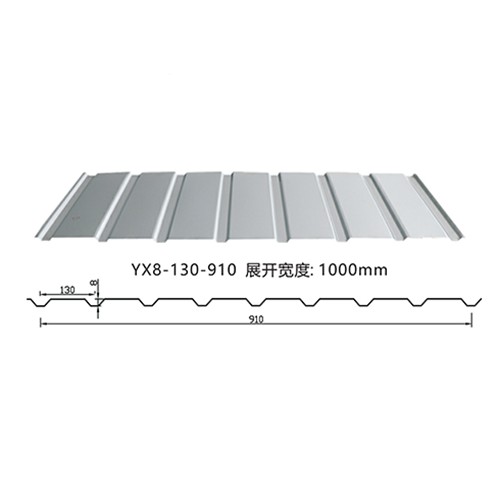

Application	Corrugated roofing sheet，Ceiling channel，industrial refrigeration，cold storagedoor panel，sandwich panel，PU panel

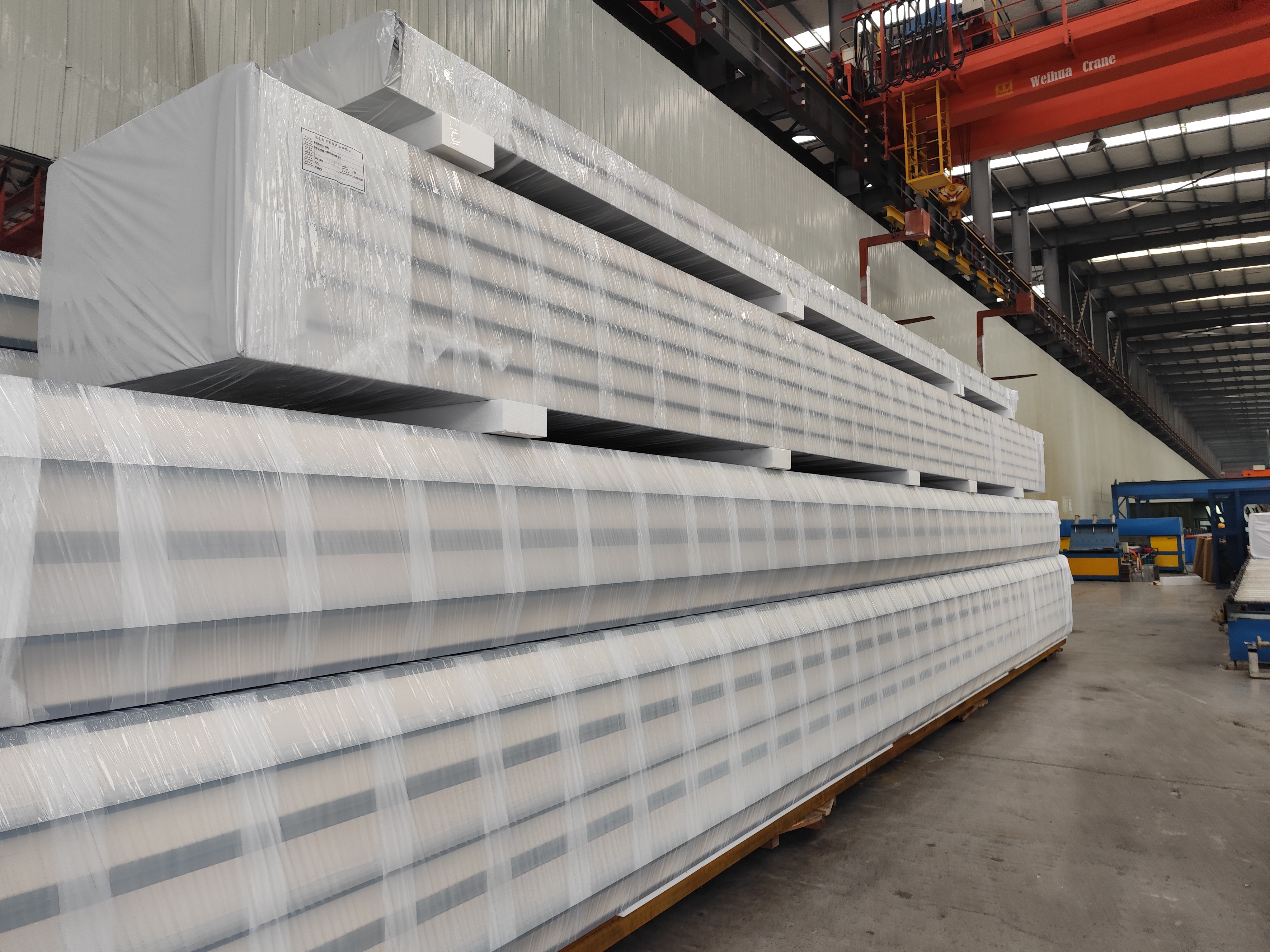

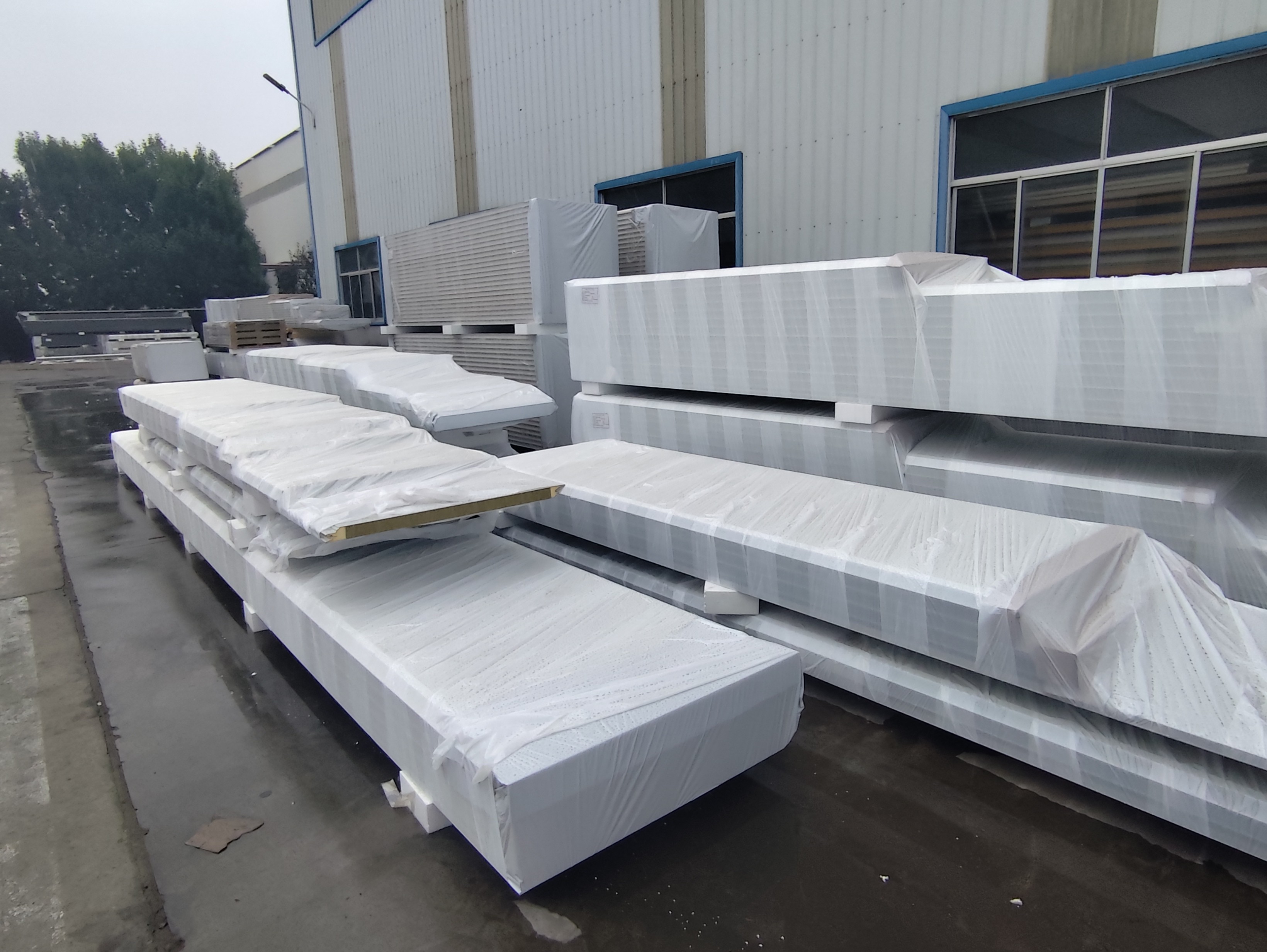

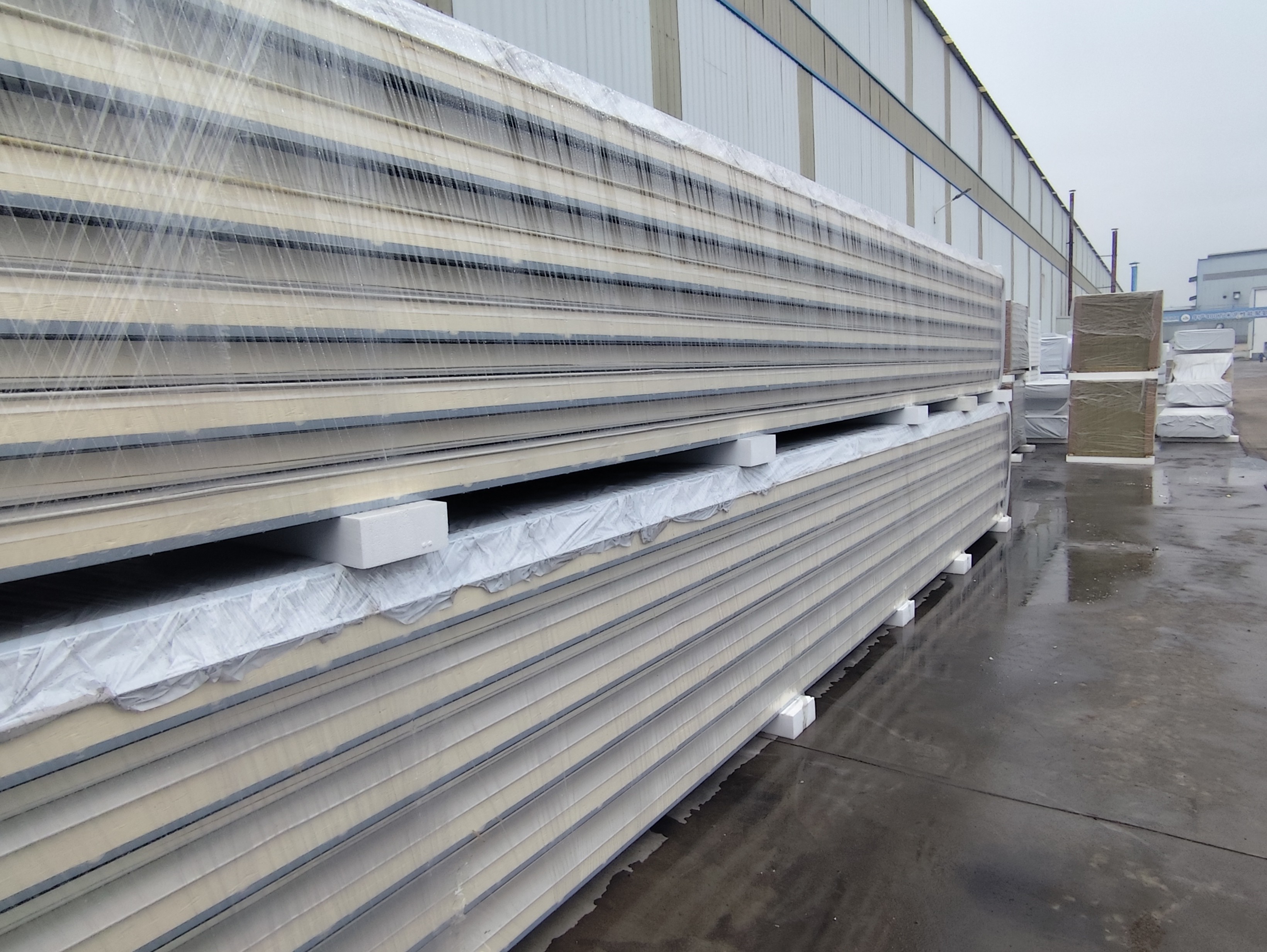

Packaging and Transportation

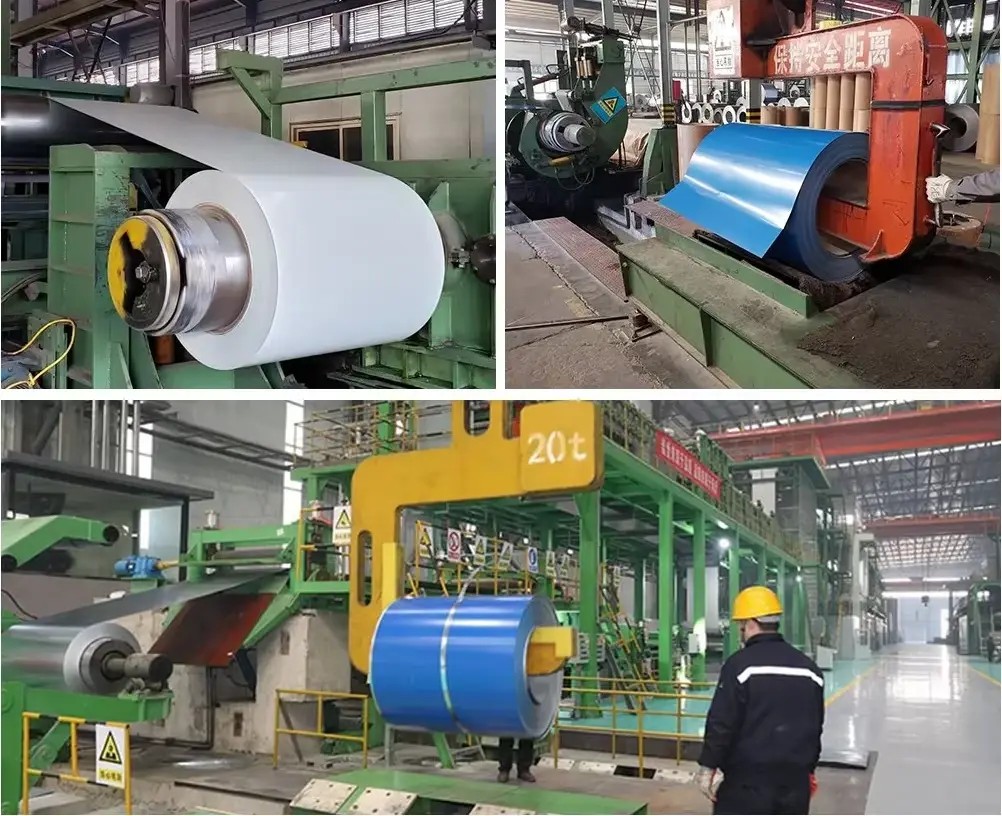

Instruments and Equipment

FAQ



Q: How can I get a quote for my project?

A: You can contact me anytime, via WeChat, WhatsApp, Email, or phone. I will get back to you as soon as possible.

jack@xingyasteel.com

+86 17305413116

+86 17305413116



Q: How long can I get the price?

A: If possible, please provide project CAD drawings, pictures or specific requirements. We usually quote within 6 hours. If you want to get a quote as soon as possible, please let us know via WeChat, WhatsApp or email so that we can prioritize your inquiry.



Q: Can we visit your factory?

A: Of course, we welcome you to visit our factory or production line on site to understand our strength and quality. We will arrange a professional team to serve you. You just need to send your itinerary and leave the rest to us.



Q: Do you provide customized product services?

A: Of course, our professional R&D team can design and produce the products you need according to your specifications and drawings. For example: special size, special control, OEM, etc.



Q: Where is the loading port?

A: Normally, we ship from Tianjin Port, Qingdao Port and Shanghai Port. Of course, we can also accept the port you specify.



Q: How to package the product?

A: According to the characteristics of the product and the mode of transportation, fix it in the most appropriate and stable way to ensure that there will be no bumps, corrosion, scratches and other problems during transportation.



Q: What if I have no import experience?

A: We have extensive export experience. Tell us what you need and we will take care of the rest! We will help you choose the most appropriate shipping service to get your products to where they need to be safely and accurately.



Q: Can you provide on-site installation service?

A: We can provide installation guidance service according to customer requirements. Construction drawings, installation drawings and videos will be sent to customers to help on-site installation. If necessary, our engineers will go to the site to guide the installation.



Q: How long is the delivery time?

A: It depends on the order quantity. Generally, the delivery time is about 10-20 days.



Q: What is your payment terms?

A: Payment ≤1000USD, 100% in advance. Payment ≥1000USD, 40% T/T in advance, the balance to be paid before shipment.



Q: How can I place an order if my trial order does not reach your MOQ?

Q: How can I place an order if my trial order does not reach your MOQ?
A: If your trial order is a small order, we can also provide the goods, we can communicate anything.



Q: How do you control product quality?

A:
1. Design quality: Consider possible problems in advance and provide high-quality design solutions.
2. Raw material quality: Select qualified raw materials
3. Production quality: Precision manufacturing process, experienced workers, strict quality inspection.
