Modular Bailey Bridge for Temporary & Permanent Use - High Strength Steel, 200T Capacity, Easy Installation

Name: Modular Bailey Bridge for Temporary & Permanent Use - High Strength Steel, 200T Capacity, Easy Installation
SKU: 0

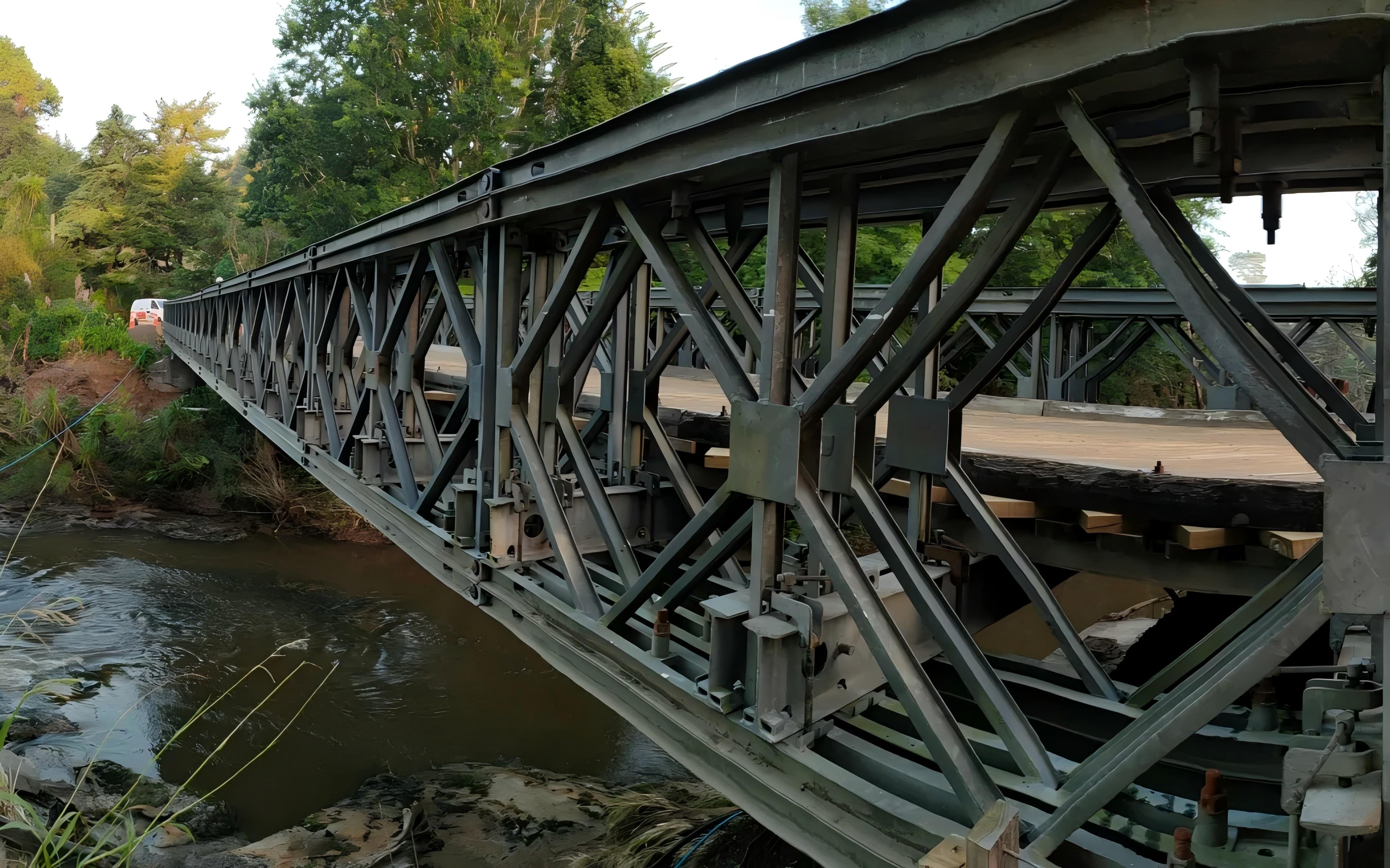

The 100ft Bailey Bridge is a standardized, modular bridging system designed to provide rapid deployment and structural stability across gaps up to 30.48 meters (100 feet). Originating from the World War II-era Bailey Bridge, this versatile structure has evolved into a critical engineering asset for military operations, disaster relief, and infrastructure projects worldwide. Its modular design allows for quick assembly using prefabricated components, making it ideal for remote or resource-limited environments [1][3].

+86 17305413116

+86 17305413116

jack@xingyasteel.com

Product Parameters

Bailey Bridge: A Modular Military-Origin Bridge for Rapid Deployment

The Bailey Bridge is a portable, prefabricated modular truss bridge designed for quick assembly using standardized components. Originally developed for military use during World War II, it has since become a vital solution for emergency, temporary, and semi-permanent bridging in civilian and military applications.

Product Description

Key Features:

1.Quick Deployment: No heavy

machinery needed; manual assembly possible. 2.Adjustable Length: 10m–60m+ (modular panels allow flexible configurations).3.Military-Grade Durability: Used by armed forces globally.4.Cost-Effective: Cheaper than concrete bridges, reusable for decades

Key Specifications

1.Material: Q345B Steel with 550g/m² Hot-Dip Galvanization2.Span Range: Modular design (3m-100m, extendable)3.Deck Width: 4.2m (Single Lane) / 7.2m (Double Lane)4.Load Capacity: 50T (HS20-44 Standard)5.Installation Time: 5-15 days (with professional team)6.Lifespan: 30+ years (Salt Spray Test ≥3000 hours)7.Certifications: ISO 9001, CE, EN1090, MIL-STD-810G8.Packaging: Seaworthy wooden crates (weatherproof)

Core Features

1.Modular & Rapid Deployment Pre-assembled steel panels with bolt-together system (no welding required)

70% faster installation than traditional bridges2.Military-Grade Durability Meets NATO STANAG 2021 standards for emergency bridges Withstands extreme conditions:

Wind: 200 km/h Earthquake: 8.0 magnitude Temperature: -40°C to 80°C 3. Cost-Effective Solution 30% lower cost than concrete bridges Fully reusable and relocatable 4. Custom Engineering Support Free technical drawings for orders >100m OEM accepted (custom logos/colors)

Technical Parameters

Component	Specification
Steel Frame	Q345B, Yield Strength ≥345MPa
Corrosion Protection	Hot-Dip Galvanized (550g/m²)
Decking Surface	Anti-slip steel grid (5mm thick)
Connection System	Connection System
Maximum Span	100m (with intermediate supports)

Applications

1.Military troop mobility and logistics

Emergency disaster relief bridges

3.Temporary access for mining/construction 4.Infrastructure detours during repairs

Competitive Advantages

Feature	Our Bridge	Concrete Bridge
Installation Time	5-15 days	3-6 months
Relocation	Reusable	Fixed
Maintenance Cost	$500/year	$5,000+/year
Lifespan	30+ years	50 years

Specification

Table 1: Material Specifications Comparison

Component	Our Standard Specification	Industry Standard	Advantage
Steel Grade	Q345B (Yield ≥345MPa)	Q235 (Yield ≥235MPa)	47% higher strength
Galvanization	550g/m² HDG	275g/m² HDG	2x corrosion protection
Bolts	Grade 8.8	Grade 4.8	100% higher shear strength
Decking	5mm anti-slip steel	3mm flat steel	67% more durable

Table 2: Performance Metrics

Parameter	Our Bridge	Competitor A	Competitor B
Max Span	100m	75m	60m
Assembly Speed	15m/day	8m/day	5m/day
Maintenance Cycle	12 months	6 months	3 months

Table 3: Climate Adaptability

Condition	Performance Rating (1-5)	Notes
Extreme Heat	♦♦♦♦♦ (50°C+)	No deformation
Arctic Cold	♦♦♦♦◊ (-40°C)	Special lubricants used
Coastal Salt Air	♦♦♦♦♦	550g/m² zinc protection
Heavy Rainfall	♦♦♦♦♦	1.5° deck slope

Table 4: Order Customization Options

Option	Choices Available	Lead Time Impact
Length	3m-100m (1m increments)	+0 days
Width	4.2m or 7.2m	+0 days
Color	RAL code selection	+3 days
Loading	20T-100T configurations	+5 days
Accessories	Ramps, lighting kits	+2-7 days

Packing & Delivery

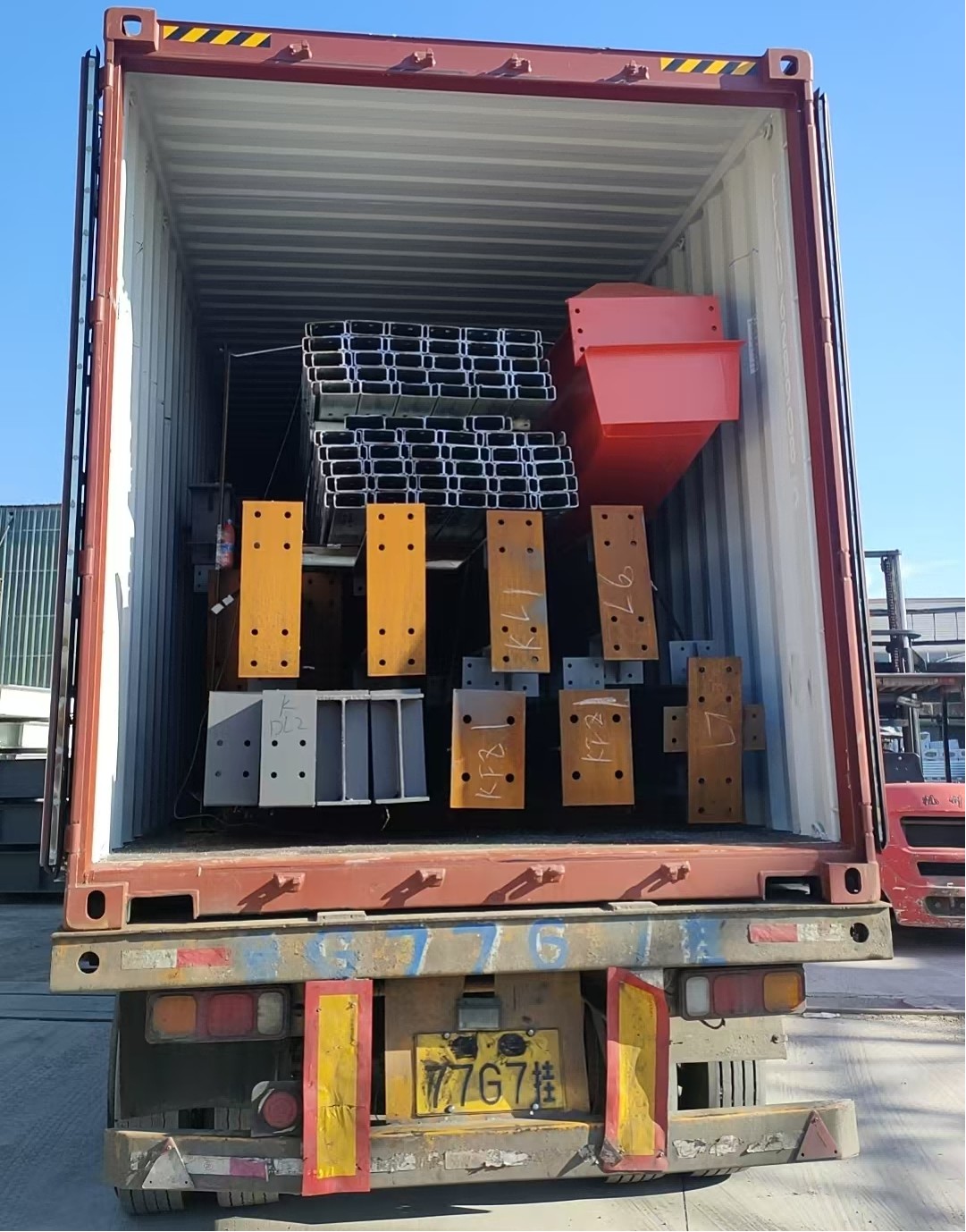

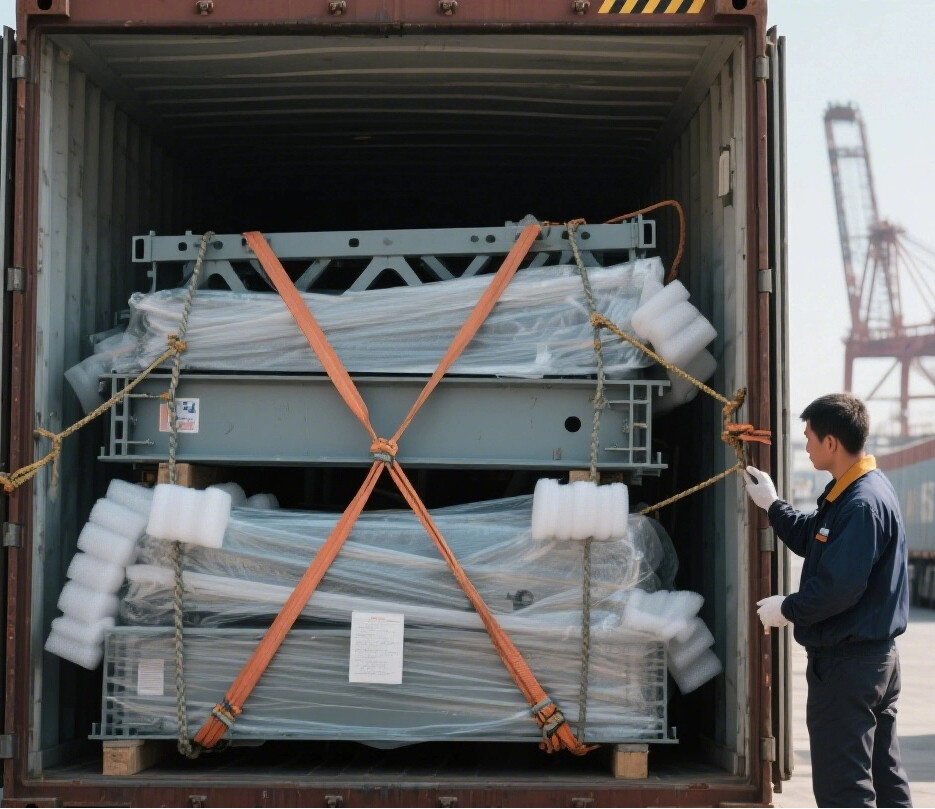

Packaging:Standard export wooden crates or steel frames.Anti-rust paper + plastic wrap for protection.Shipping:FOB Qingdao/ CIF / EXW terms supported.Delivery time: 15-30 days after order confirmation.

Certifications

Compliance & Certifications

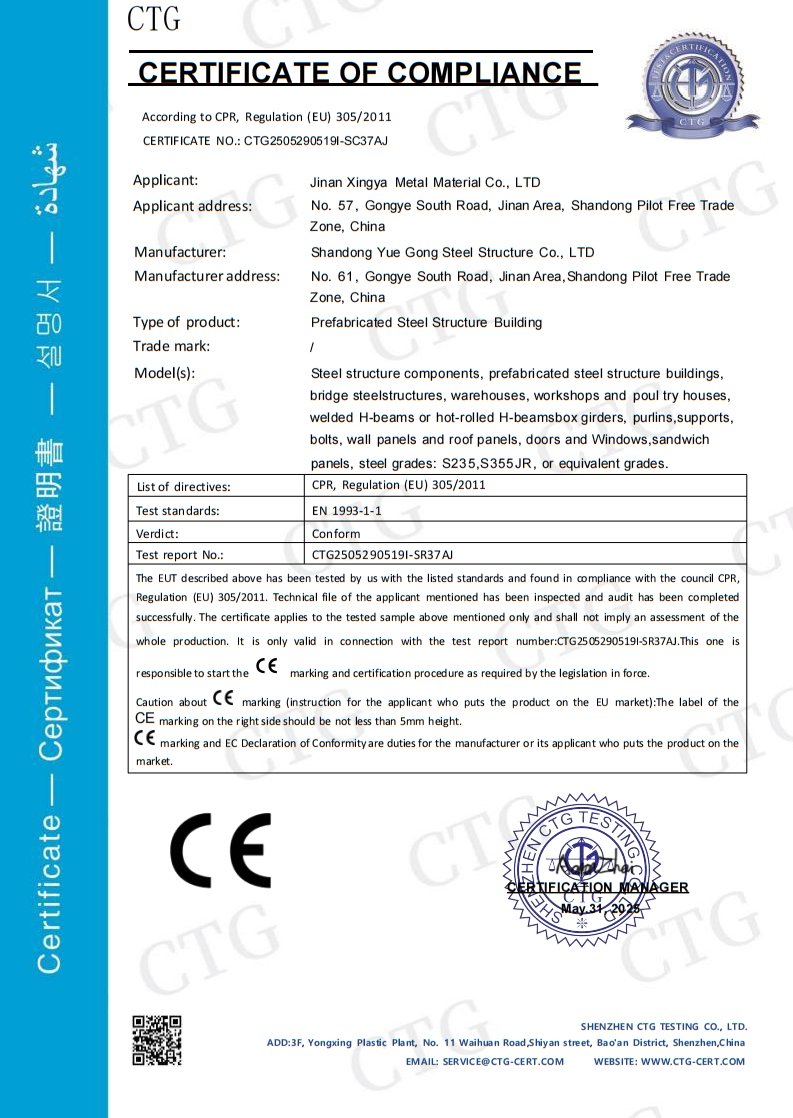

* ISO 9001:2015 Quality Management System * CE Marking (EN 1090 Execution Class 2) * MIL-STD-810G (US Military Standard) * RoHS Compliant

Company Profile

Why Choose Us?

* 15+ Years of Bailey Bridge manufacturing * 500+ Projects completed globally * In-House Engineering Team for custom designs * 24/7 Technical Support during installation

ABOUT USHIGH QUALITY STEEL SUPPLIERJinan XingYa Metal Material Co., Ltd. is a leading integrated enterprise specializing in steel raw material sales, steelstructure design, R&D, manufacturing, and installation. Equipped with self-managed import/export rights, the company holds Class-A Steel Structure Design Certification, Grade-1 Steel Manufacturing License, and multiple international accreditations including AISC (U.S. Standard) and UKAS (UK Royal Certification).
