  • Introduction of Steel Truss Bridge

Introduction of Steel Truss Bridge

Here's a concise comparison of steel truss bridge types and their key differences:
+86 17305413116
+86 17305413116
jack@xingyasteel.com
Contact Us

Product Parameters

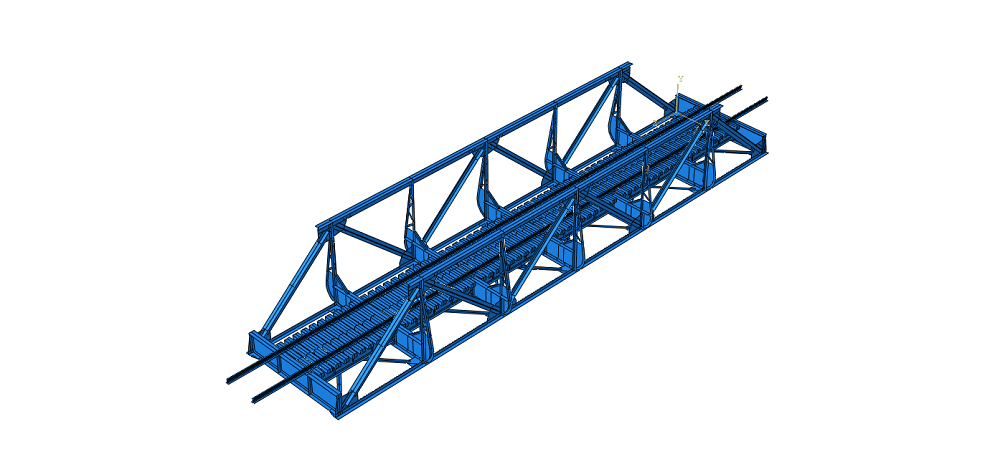

railway bridge.jpg


Here's a concise comparison of steel truss bridge types and their key differences:

Types of Steel Truss Bridges

TypeConfigurationSpan RangeKey FeaturesProsConsBest For

Warren Truss

Equilateral triangles

50-250m

Uniform load distribution

Lightweight, fewer members

Requires precise connections

Highway/railway bridges

Pratt Truss

Diagonal slopes to center (↓)

50-150m

Efficient for point loads

Simple design, good for heavy loads

More material than Warren

Railway bridges

Howe Truss

Diagonal slopes from center (↑)

30-100m

Better for timber combos

Easy assembly

Less efficient than Pratt

Historic/rehab bridges

K-Truss

"K" shaped web members

100-350m

High stability

Resists buckling

Complex fabrication

Long-span heavy loads

Baltimore Truss

Pratt variant with sub-beams

100-200m

Extra stiffness

Handles heavy point loads

Higher cost

Heavy rail bridges

Parker Truss

Curved top chord

80-300m

Arch-like shape

Aesthetic appeal

Complex engineering

Landmark bridges

Lenticular Truss

Lens-shaped (top/bottom curves)

50-150m

Aerodynamic

Wind-resistant

Limited span capacity

Scenic/pedestrian bridges

Bailey Truss

Modular panels

30-60m

Prefabricated

Rapid deployment

Lower load capacity

Military/temporary bridges

Key Differences Explained

  1. Load Transfer:

    • Pratt/Howe: Ideal for concentrated loads (railway traffic)

    • Warren: Best for uniform loads (highway bridges)

    • K-Truss: Handles combined loads (heavy + dynamic)

  2. Span Efficiency:

    • Short spans (<100m): Pratt/Howe

    • Medium spans (100-200m): Warren/Baltimore

    • Long spans (>200m): K-Truss/Parker

  3. Construction Complexity:

    • Simple: Warren (fewer members)

    • Complex: K-Truss (many small elements)

    • Rapid: Bailey (modular assembly)

  4. Aesthetics:

    • Industrial: Pratt/Warren

    • Architectural: Parker/Lenticular

  5. Material Usage:

    • Most efficient: Warren (least steel)

    • Least efficient: Howe (more members)

Selection Guide

  • Railway Crossing: Pratt/Baltimore (handles heavy point loads)

  • Highway Bridge: Warren (cost-effective for medium spans)

  • Emergency Use: Bailey (quick assembly)

  • Signature Design: Parker/Lenticular (visual impact)

  • Extreme Span: K-Truss (stability for >300m)

Technical Notes

  • Warren trusses save ~15% steel vs. Pratt

  • K-Truss can reduce deflection by 20% vs. Warren

  • Bailey bridges assemble 3x faster than conventional trusses
